Undeploying Omni-Patient Management Central

How to:

If required, you can undeploy the following web archive files for Omni-Patient Management Central (OPMC):

Procedure: How to Undeploy an Existing Version of Omni-Patient Management Central

Using a terminal emulator (for example, Putty), connect to the Linux system where OPMC will be undeployed.
Navigate to the /bin directory where Apache Tomcat is installed. For example:
```
/home/apache-tomcat-7.0.47/bin
```
The following image shows a terminal emulator window that is connected to a Linux system and where the cd command is being used to navigate to the /bin directory where Apache Tomcat is installed.
Run ./startup.sh to start Apache Tomcat application server if it has not been started.
Enter the following URL in a web browser:
```
http://iwserv13.ibi.com:8080/
```
The Apache Tomcat web console opens.
Click Manager App, as shown in the following image.
Log in as required and then locate the deployed components for the Omni-Patient 360 Viewer application, as shown in the following image.

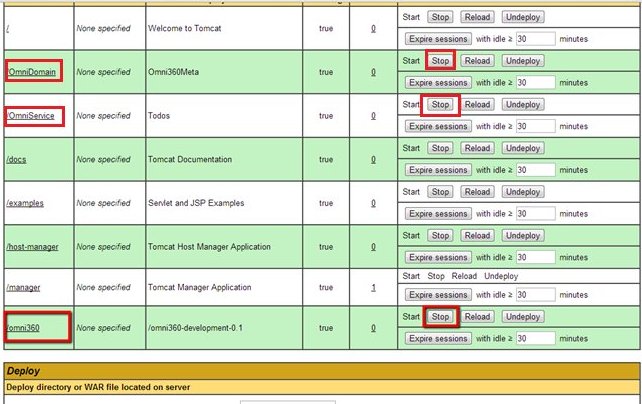

Click Stop for each deployed component.

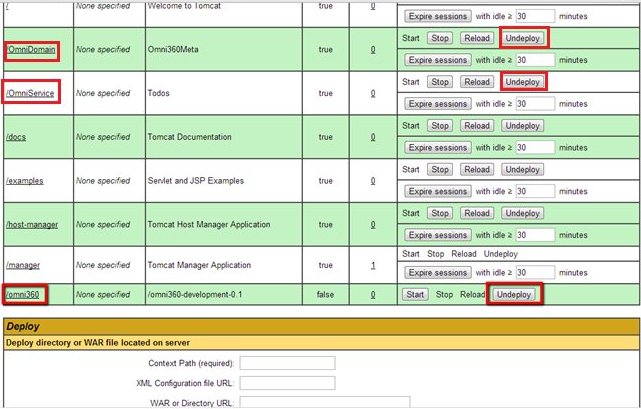

Click Undeploy for each deployed component, as shown in the following image.

Omni-Patient Management Central (OPMC), including the Omni-Patient 360 Viewer application is now undeployed from the Apache Tomcat application server.
