Working With iWay Integration Tools (iIT)
|
How to: |
This section describes how to import, edit, and export an Ebix using iWay Integration Tools (iIT).
Procedure: How to Import an Ebix
- Start iWay Integration Tools (iIT).

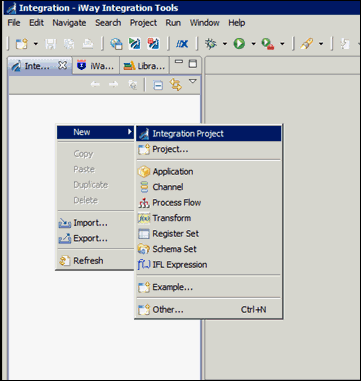

- Right-click the Integration Explorer pane, click New,
and select Integration Project from the context
menu.

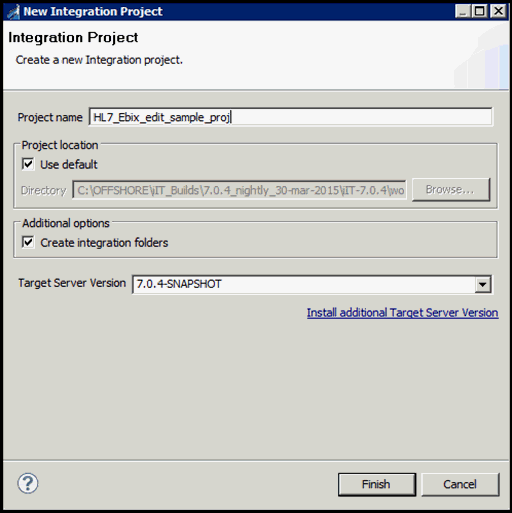

- Enter a new Integration Project name, for example, HL7_Ebix_edit_sample_proj,
in the Project name field, and click Finish.

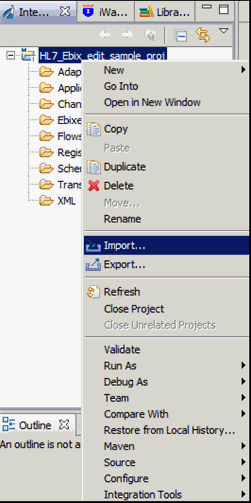

- Right-click the Integration Explorer pane and select Import from
the context menu, as shown in the following image.

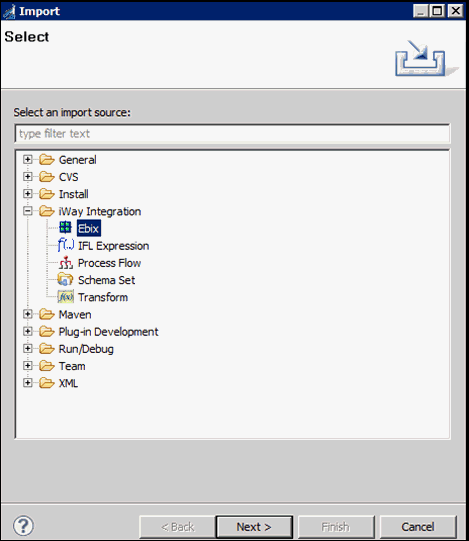

- In the Import wizard, expand iWay Integration, select Ebix,
and then click Next, as shown in the following
image.

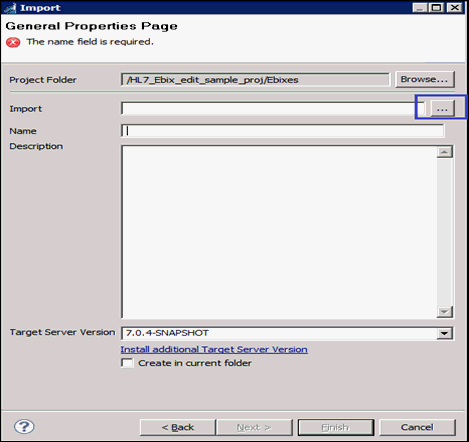

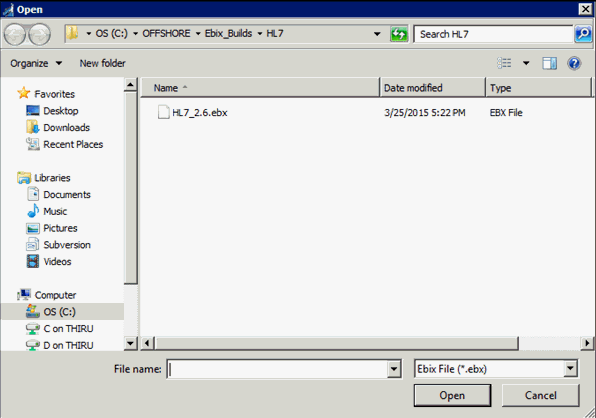

- Click the ellipsis button (…)
and select the downloaded HIPAA_5010X299.ebx file from the
physical drive location.
- Click Open, as shown in the following image.

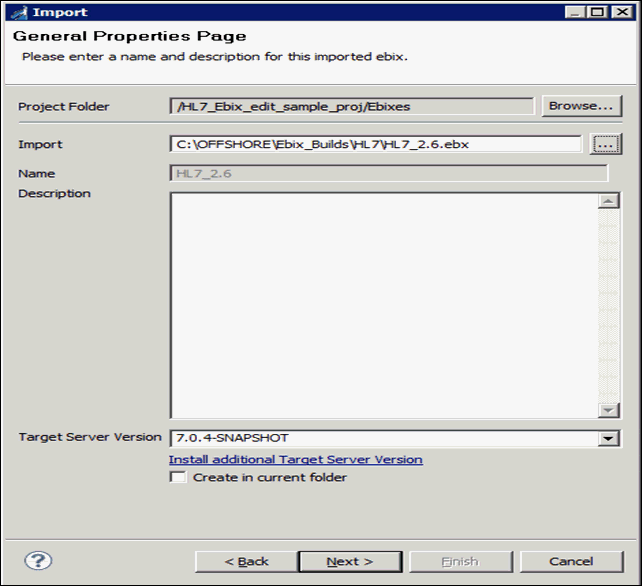

- Click Next, as shown in the following image.

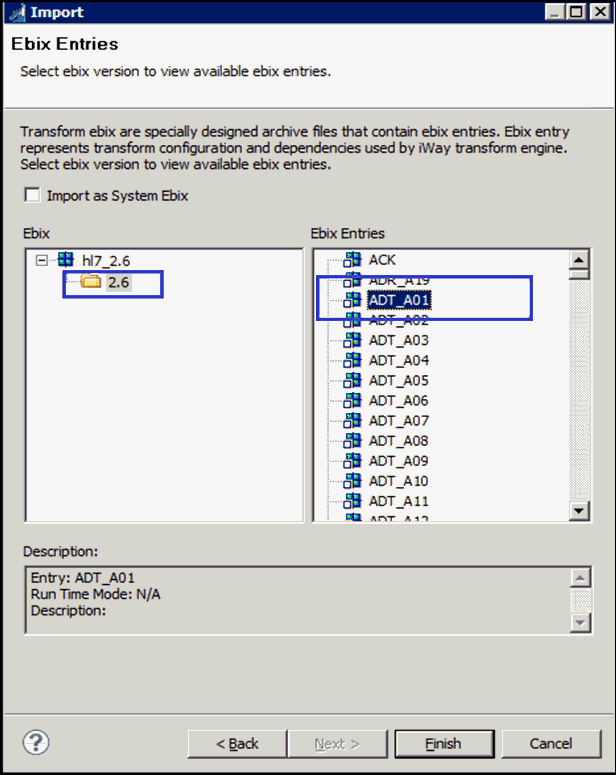

- Expand the Ebix showed in the Ebix pane, select ADT_A01 from
the Ebix Entries pane, and then click Finish.
Your iWay Integration Tool interface should resemble the following image:
Procedure: How to Edit an Ebix
- Click the HL7_ADT_A01_2.6 tab to open the HL7 Ebix structure.

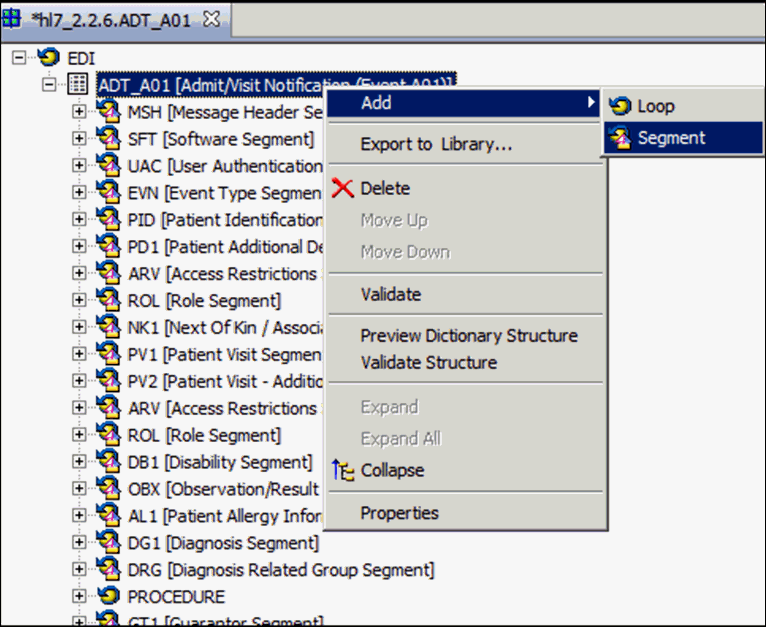

- Right-click the ADT_A01 [Admit/Visit Notification
(Event A01)] element, select Add,
and then click Segment, as shown in the following
image.

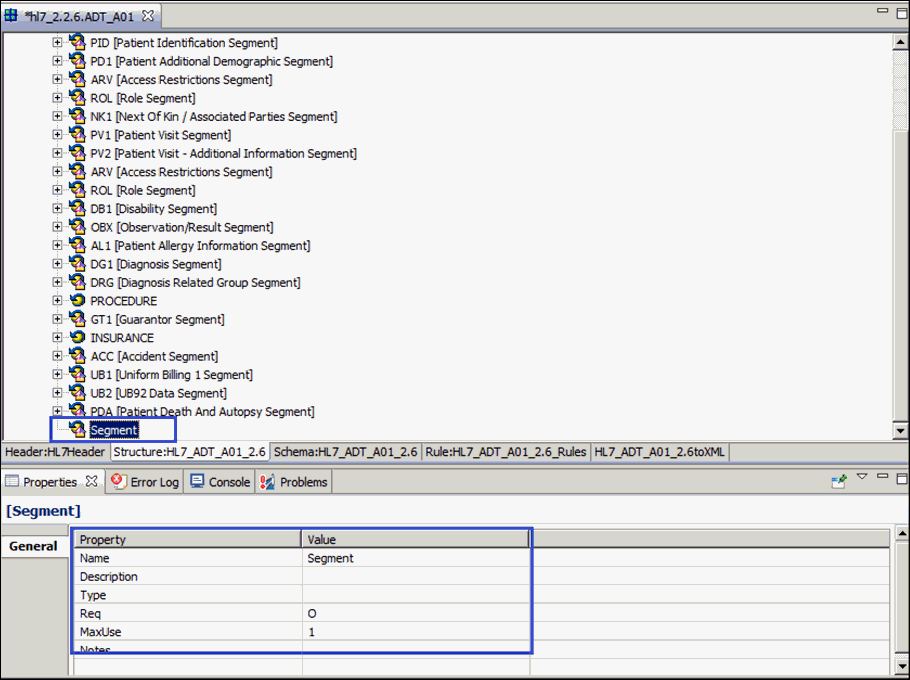

You screen should resemble the following image.

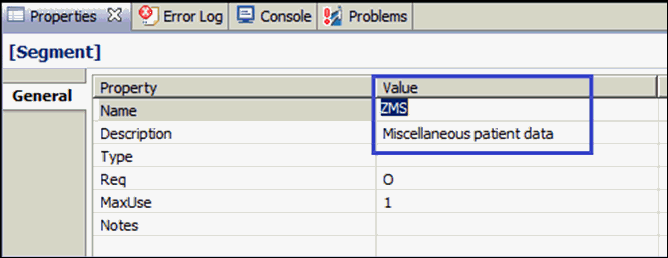

- Provide valid segment name (for example, ZMS)
and description (for example, Miscellaneous patient data)
by double-clicking on the value field of its property, as shown in
the following image.

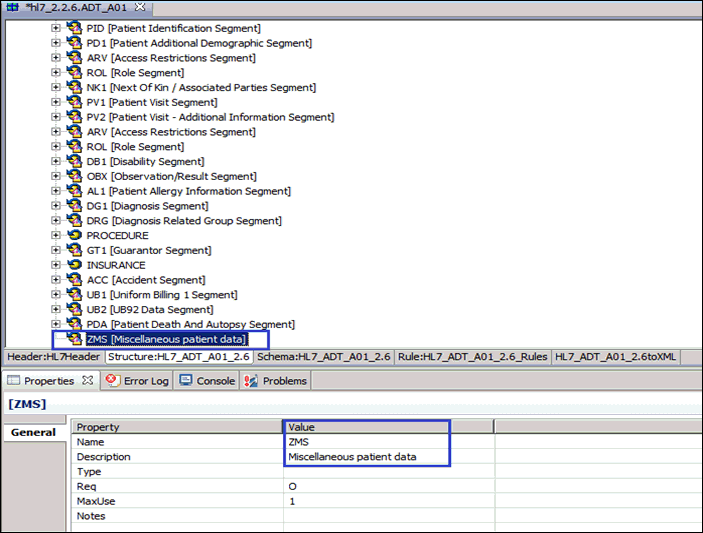

You screen should resemble the following image.

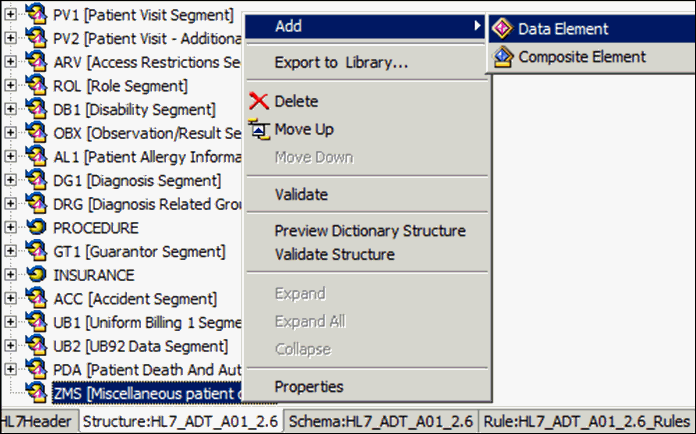

- Right-click ZMS [Miscellaneous patient data] to add
Data Elements in it, select Add, and then
click Data Element, as shown in the following
image.

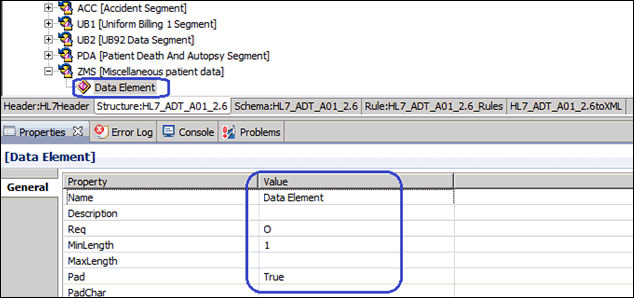

- Right-click the newly created Data Element and select Properties.

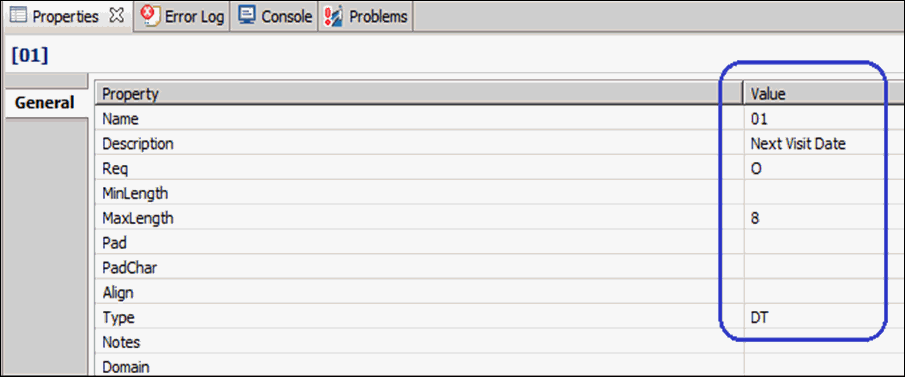

- Change the Name field value to 01, Description
value to Next Visit Date, MaxLength value
to 8, and the Type value to DT,
as shown in the following image.
Note: Use Backspace to delete existing values in the value field.
- Repeat step 4 to create the following two data elements:
- Reason Code
- Number Of Days Left

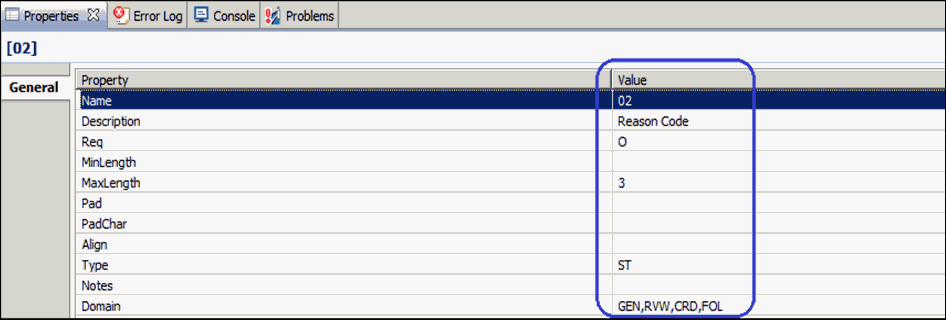

- Input the following values into their respective parameters
in the second data element (Reason Code) under the ZMS segment.
Parameter
Value
Name
02
Description
Reason Code
Req
O
MaxLength
3
Type
ST
Domain
GEN, RVW, CRD, FOL

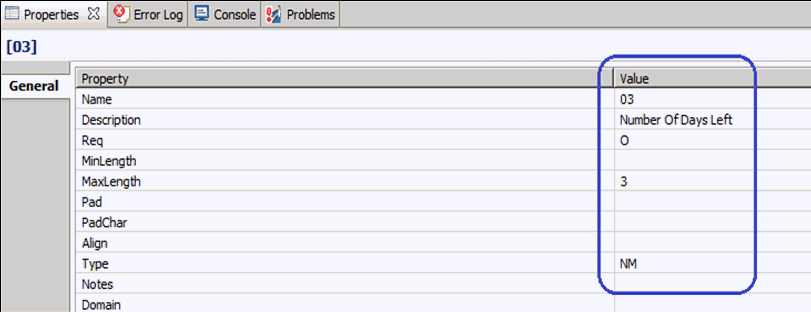

- Input the following values into their respective parameters
in the third data element (Number Of Days Left) under the ZMS segment.
Parameter
Value
Name
03
Description
Number Of Days Left
Req
O
MaxLength
3
Type
NM

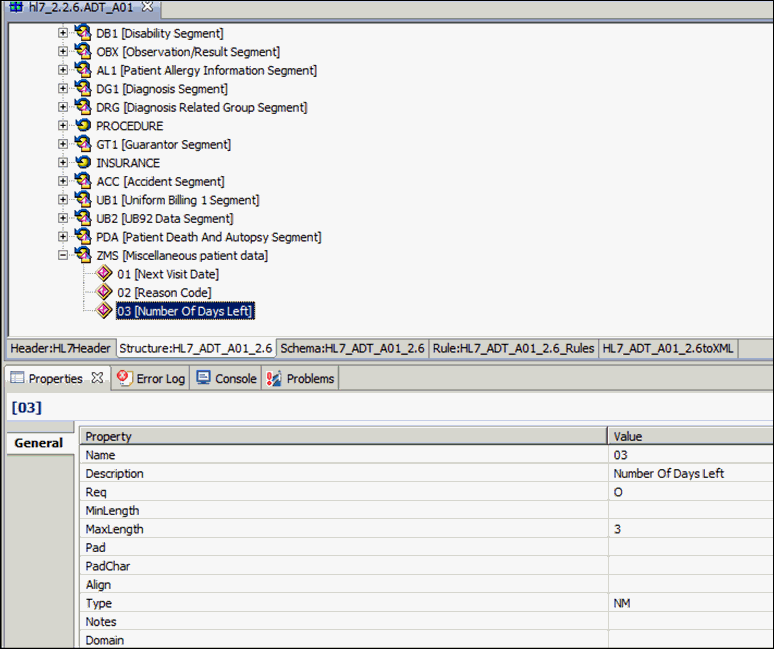

Your iWay Integration Tool screen should resemble the following image.
Procedure: How to Export an Ebix
To export an Ebix:

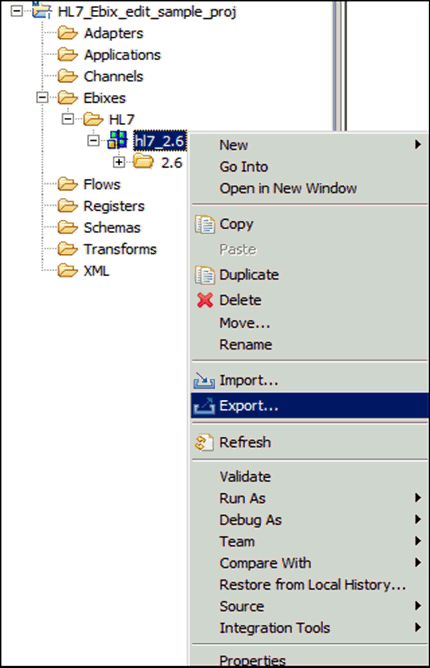

- Right-click the hl7_2.6 Ebix
from the Integration Explorer window and select the Export option
from the context menu, as shown in the following image.

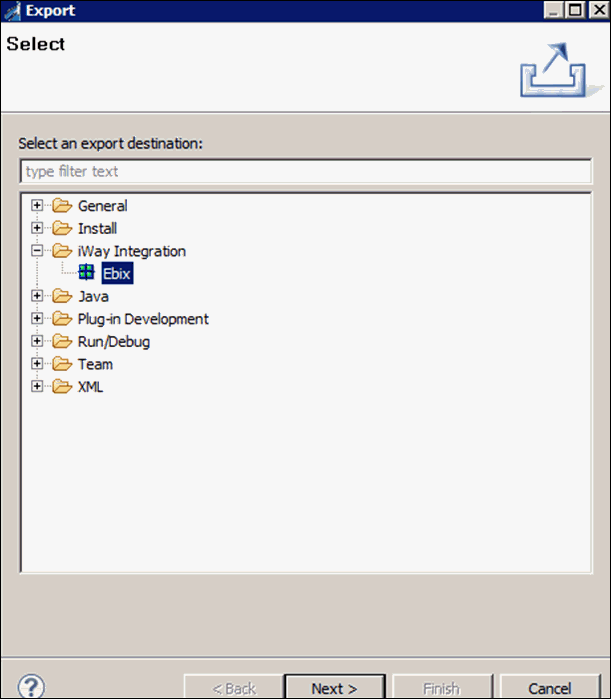

- Expand the iWay Integration folder,
select Ebix, and then click Next,
as shown in the following image.

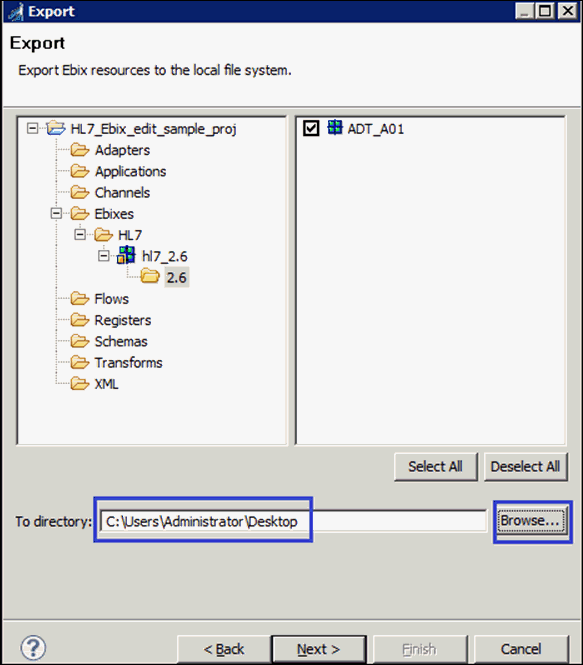

- Expand the iIT project (for example, HL7_Ebix_edit_sample_proj)
from the Export wizard and expand Ebixes, HL7, HL7_2.6,
select the 2.6 folder from the left pane
of Export wizard, and then select the ADT_A01 check
box on the right pane, as shown in the following image.

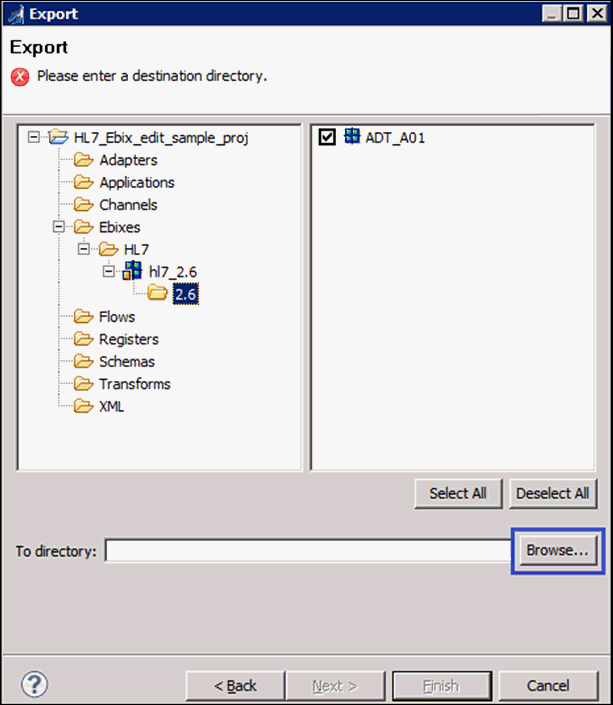

- Click Browse and choose a folder
location to store the Ebix, and then click Next,
as shown in the following image.

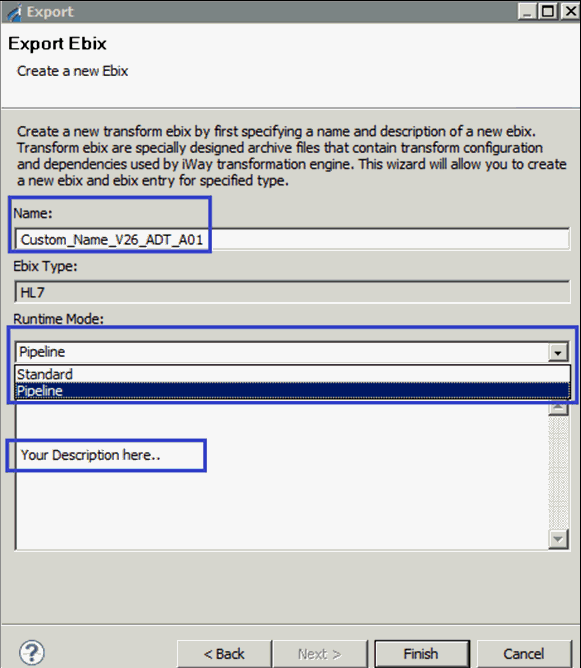

- Provide a valid name for the Ebix in the Name field,
select Pipeline from the Runtime Mode drop-down
list, add a description (optional), and then click Finish,
as shown in the following image.
Your exported Ebix is available in the specified location.
